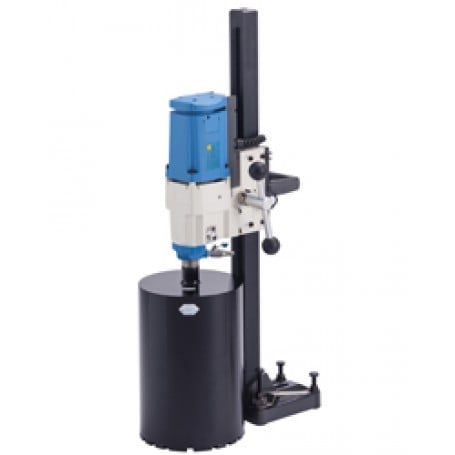

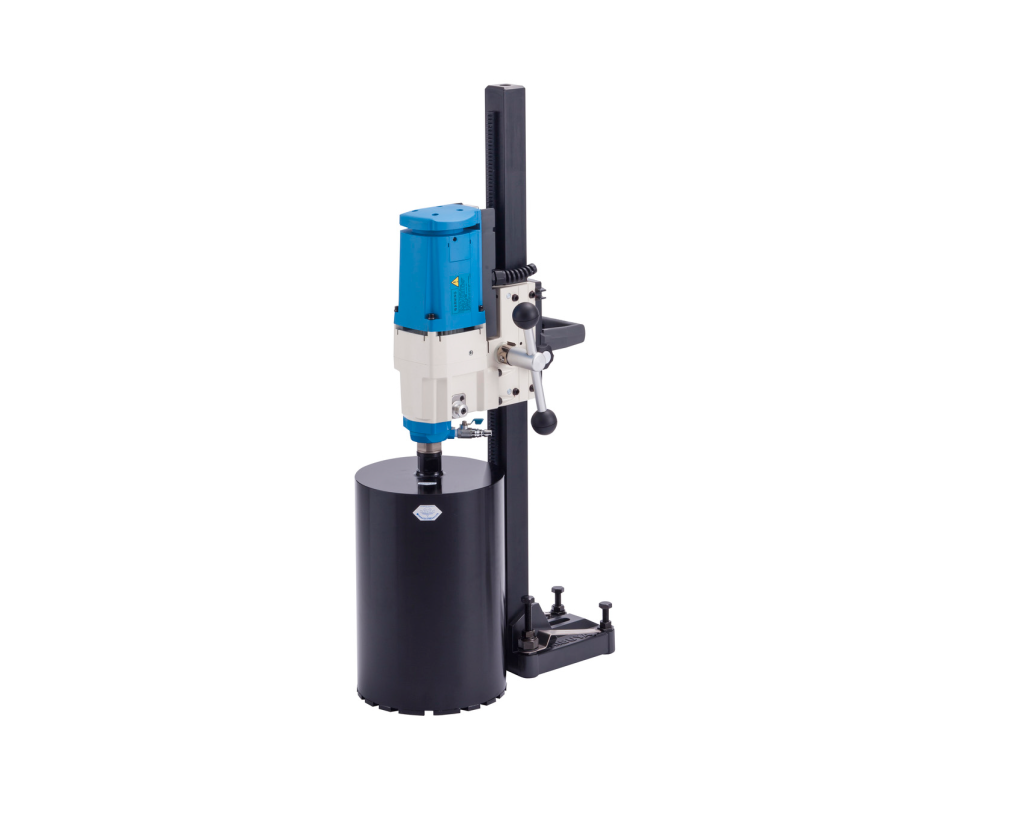

Shibuya Core Drill H2021/H2022 2 Speed Motor And Angle Stand

Brand: Diamond Products

SKU: DP-13080401

Maximum Bit Capacity: 300mm (10″) with 30mm Spacer.

About This Product

Ideal machine for medium-sized jobs.
Multi-position water swivel inlet for convenience.
Right and left-hand feed handle positions.
Built-in on/off switch with low voltage drop-out and motor overload protection.
Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240 V only)
Two motors available: H1721 (Normal)/ H1722 (Small diameter).
Includes water collector ring.
Normal Stand Column: 800 mm (31″) with 488 mm (19″) stroke. Long Column: 1000 mm (39″) with 688 mm (27″) stroke. Angle Drill AB52 Column: 1000 mm (39″) with 688 mm (27″) stroke.
50 x 50 mm (2″ x 2″) square column.
Tool kit including wrenches and allen keys.

Rated Input	2,700 W (100V)・2,300 W (110-120V)・3,450 W (220-240V)
Voltage	AC 100V・110-120V・220-240V, 50/60 Hz
Speed	2
Spindle Revolutions at No Load	470/1,050 rpm (H2021 100V)・450/950 rpm (H2021 110-120V)・550/1,200 rpm (H2021 220-240V)
Spindle Revolutions at Rated Load	320/720 rpm (H2021 100V)・310/680 rpm (H2021 110-120V)・300/730 rpm (H2021 220-240V)
Spindle Thread	UNC 1 -1/4″・A-Rod
Weight	H2021 w carriage block: 12.2 kg・TS-255(800L): 6.6 kg・TS-255(1000L): 7.5 kg・TS-255(AB52): 7.2 kg
Height	803 mm・1003 mm・1011 mm (AB52)
Base Size	158 x 217 mm・146 x 205 mm (AB52)
Available Stroke	493 mm ・693 mm (1003L) ・680 mm (AB52)

R49,819.15 Incl VAT

Delivery

We will be in contact within 12 hours of your order completion to discuss shipping arrangements. This will be levied as an additional charge.

Please see our Frequently Asked Questions for more details.

Additional information

Weight	26 kg
Description	H2021/H2022

Shibuya Core Drill H2021/H2022 2 Speed Motor And Angle Stand
